Go has a lot of tools available for you to understand where your application might be spending CPU time or allocating memory. I don’t use these tools daily so I always end up searching for the same thing every time. This post aims to be a reference document for everything that Go has to provide.
We’ll be using https://gitlab.com/steveazz-blog/go-performance-tools-cheat-sheet as a demo project and there are 3 implementations of the same thing, one more performant than the other.
One of the most popular ways to see if you improved something is to use Benchmarks which is built into Go.
In our demo project, there is already benchmarks avaiable and we can run them with a single command.
go test -bench=. -test.benchmem ./rand/ goos: darwin goarch: amd64 pkg: gitlab.com/steveazz/blog/go-performance-tools-cheat-sheet/rand cpu: Intel(R) Core(TM) i7-6820HQ CPU @ 2.70GHz BenchmarkHitCount100-8 3020 367016 ns/op 269861 B/op 3600 allocs/op BenchmarkHitCount1000-8 326 3737517 ns/op 2696308 B/op 36005 allocs/op BenchmarkHitCount100000-8 3 370797178 ns/op 269406189 B/op 3600563 allocs/op BenchmarkHitCount1000000-8 1 3857843580 ns/op 2697160640 B/op 36006111 allocs/op PASS ok gitlab.com/steveazz/blog/go-performance-tools-cheat-sheet/rand 8.828s
-test.benchmem is an optional flag to show memory allocations
Taking a closer look at what each column means:
BenchmarkHitCount100-8 3020 367016 ns/op 269861 B/op 3600 allocs/op ^------------------^ ^ ^ ^ ^ ^ | | | | | | Name Number of CPUs Total runs Nanoseconds per operation Bytes per operation Allocations per operations
# Run benchmarks on `main` git checkout main go test -bench=. -test.benchmem -count=5 ./rand/ > old.txt # Run benchmarks on `best git checkout best go test -bench=. -test.benchmem -count=5 ./rand/ > new.txt # Compare the two benchmark results benchstat old.txt new.txt name old time/op new time/op delta HitCount100-8 366µs ± 0% 103µs ± 0% -71.89% (p=0.008 n=5+5) HitCount1000-8 3.66ms ± 0% 1.06ms ± 5% -71.13% (p=0.008 n=5+5) HitCount100000-8 367ms ± 0% 104ms ± 1% -71.70% (p=0.008 n=5+5) HitCount1000000-8 3.66s ± 0% 1.03s ± 1% -71.84% (p=0.016 n=4+5) name old alloc/op new alloc/op delta HitCount100-8 270kB ± 0% 53kB ± 0% -80.36% (p=0.008 n=5+5) HitCount1000-8 2.70MB ± 0% 0.53MB ± 0% -80.39% (p=0.008 n=5+5) HitCount100000-8 270MB ± 0% 53MB ± 0% -80.38% (p=0.008 n=5+5) HitCount1000000-8 2.70GB ± 0% 0.53GB ± 0% -80.39% (p=0.016 n=4+5) name old allocs/op new allocs/op delta HitCount100-8 3.60k ± 0% 1.50k ± 0% -58.33% (p=0.008 n=5+5) HitCount1000-8 36.0k ± 0% 15.0k ± 0% -58.34% (p=0.008 n=5+5) HitCount100000-8 3.60M ± 0% 1.50M ± 0% -58.34% (p=0.008 n=5+5) HitCount1000000-8 36.0M ± 0% 15.0M ± 0% -58.34% (p=0.008 n=5+5)
Notice that we pass the
-count flag to run the benchmarks multiple times so it
can get the mean of the runs.
Go comes with its own profiler where it will give you a better understanding of where the CPU time is being spent on or where the application is allocatingthe memory. Go samples these over some time for example it will look at the CPU/Memory usage every X nanoseconds for X amount of seconds.
You can generate profiles using benchmarks that we have in the demo project.
go test -bench=. -cpuprofile cpu.prof ./rand/
go test -bench=. -memprofile mem.prof ./rand/
Make sure that your application is not sitting idle and doing work or receiving requests so that the profiler can sample calls, or you might end up with an empty profile since the application is idle.
# CPU profile curl http://127.0.0.1:8080/debug/pprof/profile > /tmp/cpu.prof # Heap profile curl http://127.0.0.1:8080/debug/pprof/heap > /tmp/heap.prof # Allocations profile curl http://127.0.0.1:8080/debug/pprof/allocs > /tmp/allocs.prof
If you visit
/debug/pprof it will give a list of all the available
endpoints and what they mean.
This is similar to the
net/http/pprof where add it to your
application, but instead of adding for all of the project, you can
specify a specific code path where you want to generate the profile.
This can be useful when you are only interested in a certain part of
your application and you want to sample only that part of the
application. To read how to use it check the go
You might also use this to label your application which can help you understand the profile better.
Now that we know how to generate profiles, let’s see how we can read them to know what our application is doing.
The command that we will be using is
go tool pprof.
For example to use the
/debug/pprof endpoints that we have
in our demo application, we can pass in the HTTP endpoint directly.
# Open new browser window with call graph after 30s profiling. go tool pprof -http :9402 http://127.0.0.1:8080/debug/pprof/profile
Another option is to use
curl to download the profile and then use
tool which might be useful to get profiles from production endpoints
that aren’t exposed to the public internet.
# Server. curl http://127.0.0.1:8080/debug/pprof/profile > /tmp/cpu.prof # Locally after you get it from the server. go tool pprof -http :9402 /tmp/cpu.prof
Notice that in all the commands we are passing the
-http flag, this is
optional because by default this opens the CLI interface.
Below you can see our demo application call graph. To better understand what it means you should read Interpreting the Callgraph
The callgraph is useful to see what the program is calling and can also help you understand where the application is spending time. An alternative way of understanding where the CPU time or memory allocation is going is to use a Flame Graph.
Using the same demo application let’s run
go tool pprof once more:
# From endpoint go tool pprof -http :9402 http://127.0.0.1:8080/debug/pprof/profile # From the local profile go tool pprof -http :9402 /tmp/cpu.prof

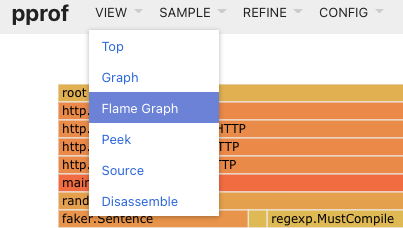

However this time we will use the top navigation bar go to

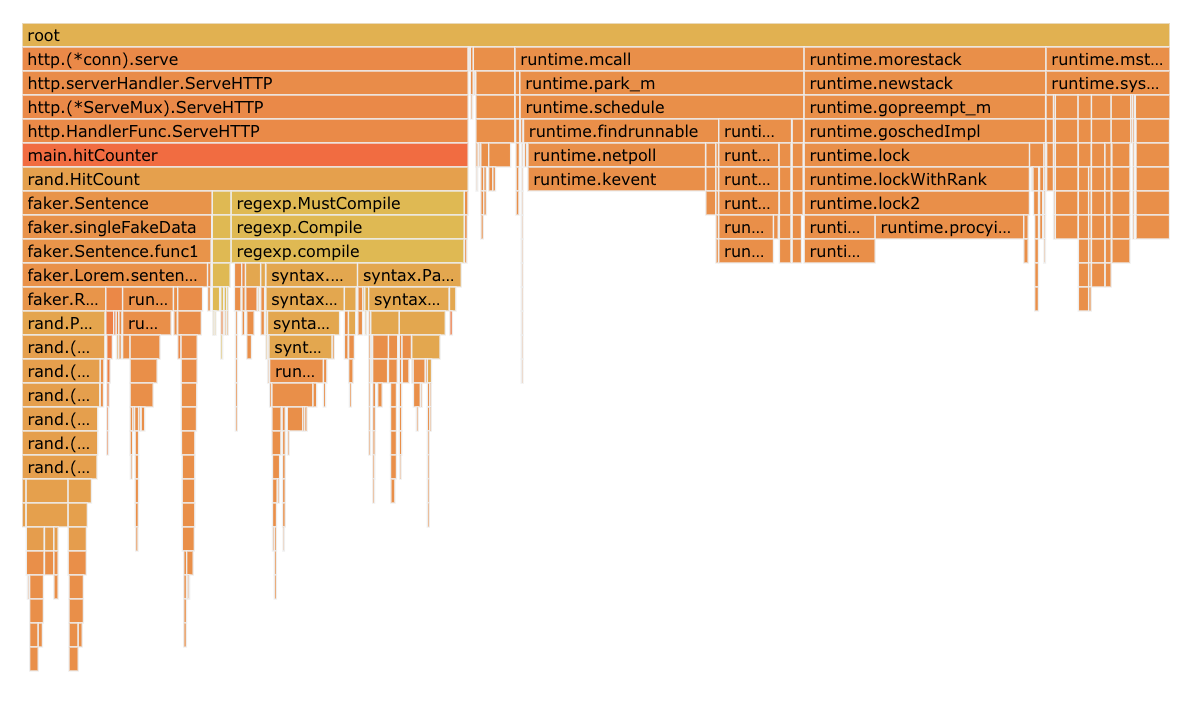

Then you should see something like below:
For you to better understand how to read flame graphs you can check out What Are Flame Graphs and How to Read Them, RubyConfBY 2017
You can also use speedscope which is a language-agnostic application to generate flame graphs from profiles and it’s a bit more interactive than the one provided from Go.
go tool pprof also allows you to use to compare
to show you the difference between 1 profile and another.
Using our demo project once again we can generate profiles for the
# Run on `main` curl http://127.0.0.1:8080/debug/pprof/profile > /tmp/main.prof # Run on `best` curl http://127.0.0.1:8080/debug/pprof/profile > /tmp/best.prof # Compare profiles go tool pprof -http :9402 --diff_base=/tmp/main.prof /tmp/best.prof
One last tool that we need to go through is the CPU tracer. This gives you an accurate representation of what was happening during the program execution. It can show you which cores are sitting idle and which ones are busy. This is great if you are debugging some concurrent code that isn’t performing as expected.
Using our demo application again let’s get the CPU trace using the
/debug/pprof/trace endpoint that is added using the
curl http://127.0.0.1:8080/debug/pprof/trace > /tmp/best.trace go tool trace /tmp/best.trace
A more detailed explanation of the tracer can be found over at Gopher Academy Blog
